Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Body Style | Cylindrical |
| Connection Type | M12 4-Pin |
| Current Consumption | 10 uA (Max.) |
| Current, Switching | 100 mA |
| Dimensions | 65mm L |
| Frequency, Switching | 0.015 kHz |
| Housing Material | Stainless Steel 1.4305 (ASI 303) |
| IP Rating | IP68 |
| Maximum Operating Temperature | 70 C |
| Measurement Range | 5 mm |
| Minimum Operating Temperature | -25 C |
| Mounting Type | Flush |
| Operating Temperature, Maximum | 70 C |
| Operating Temperature, Minimum | -25 C |
| Output | PNP-NO |
| Primary Type | Inductive Proximity Sensors |
| Series | |
| Shielding | Shielded |
| Standards | cULus Listed, cCSAus Certified, CE Marked |
| Supply Voltage | 10-30 VDC |
| Termination | 3-wire |
| Voltage Regulation | DC |
Overview

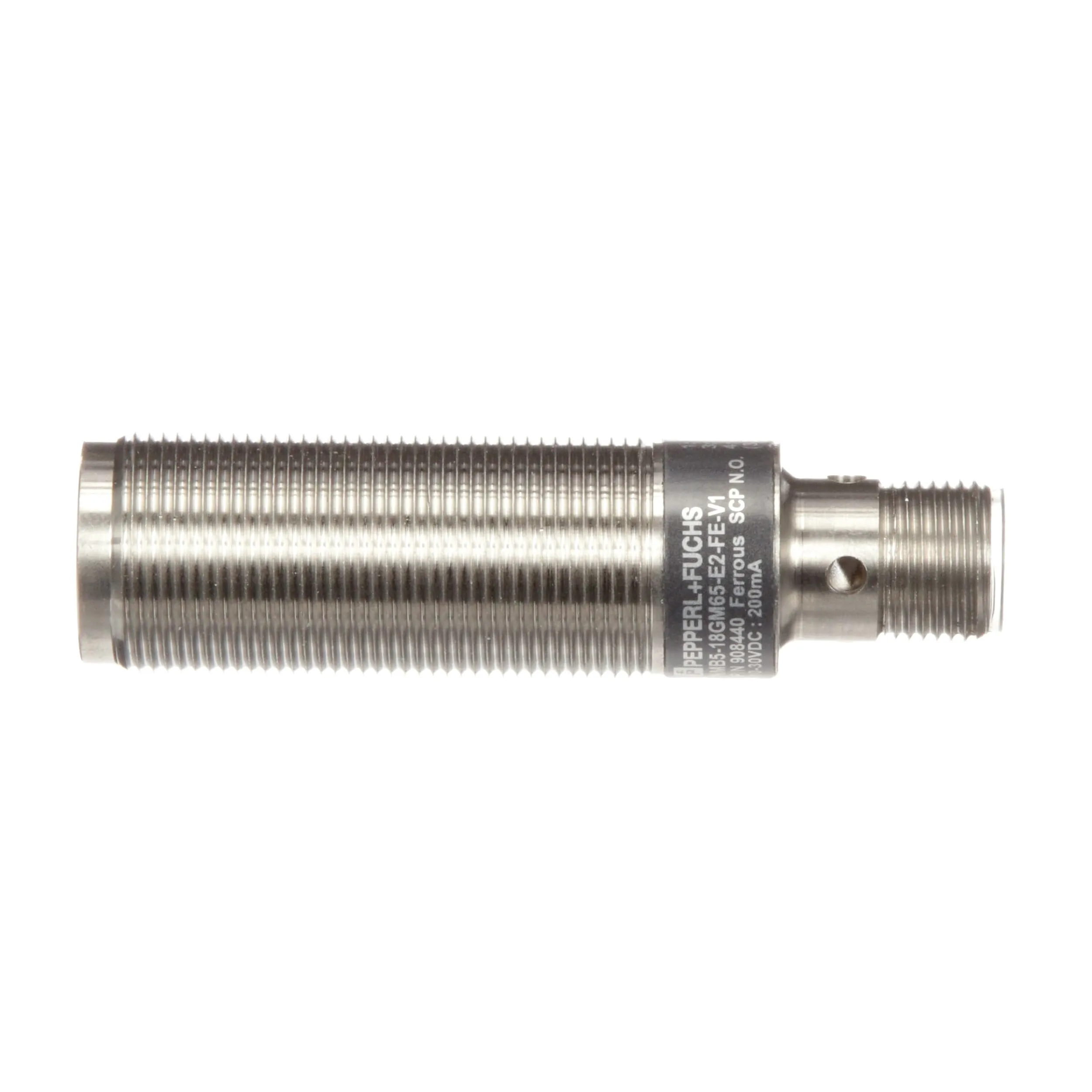

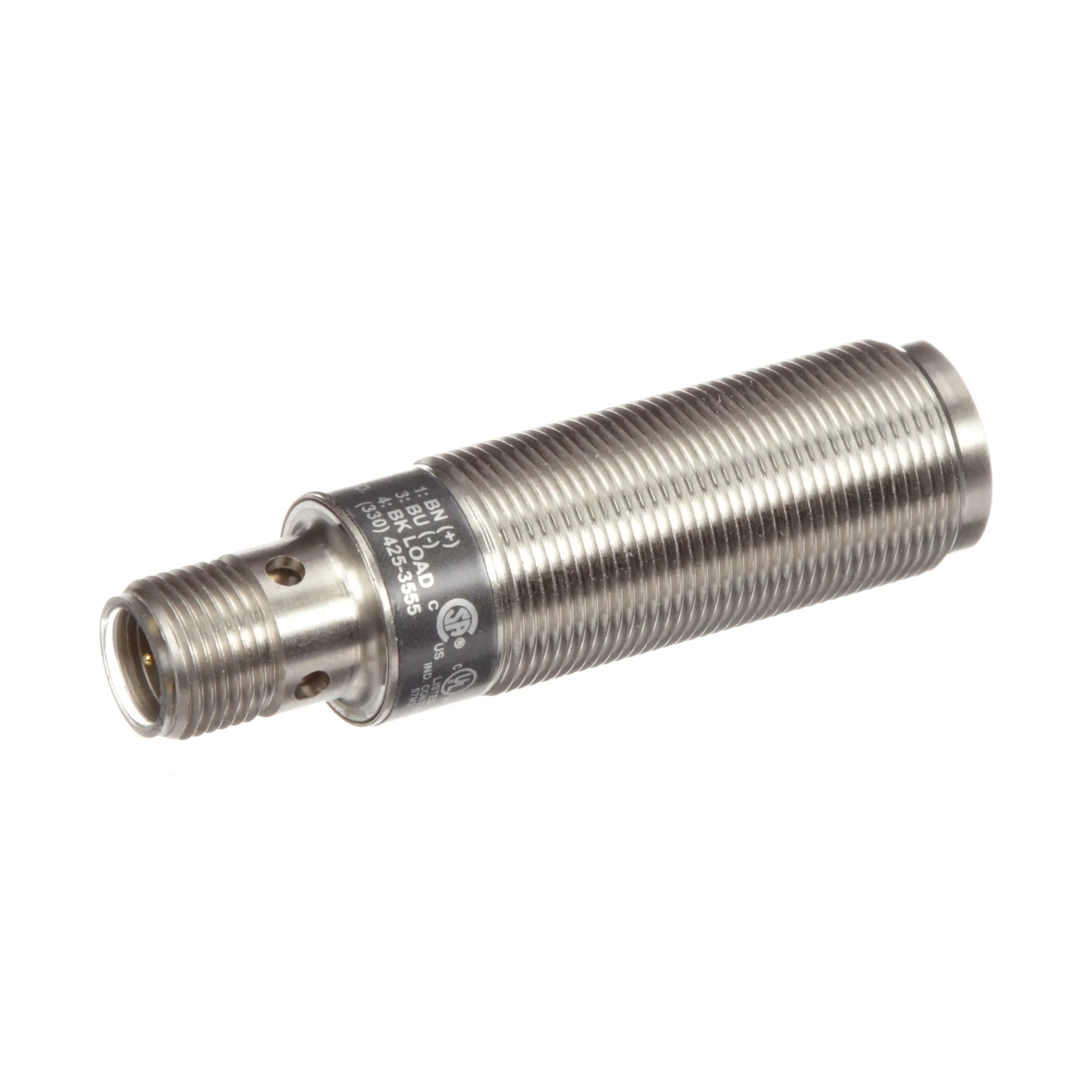

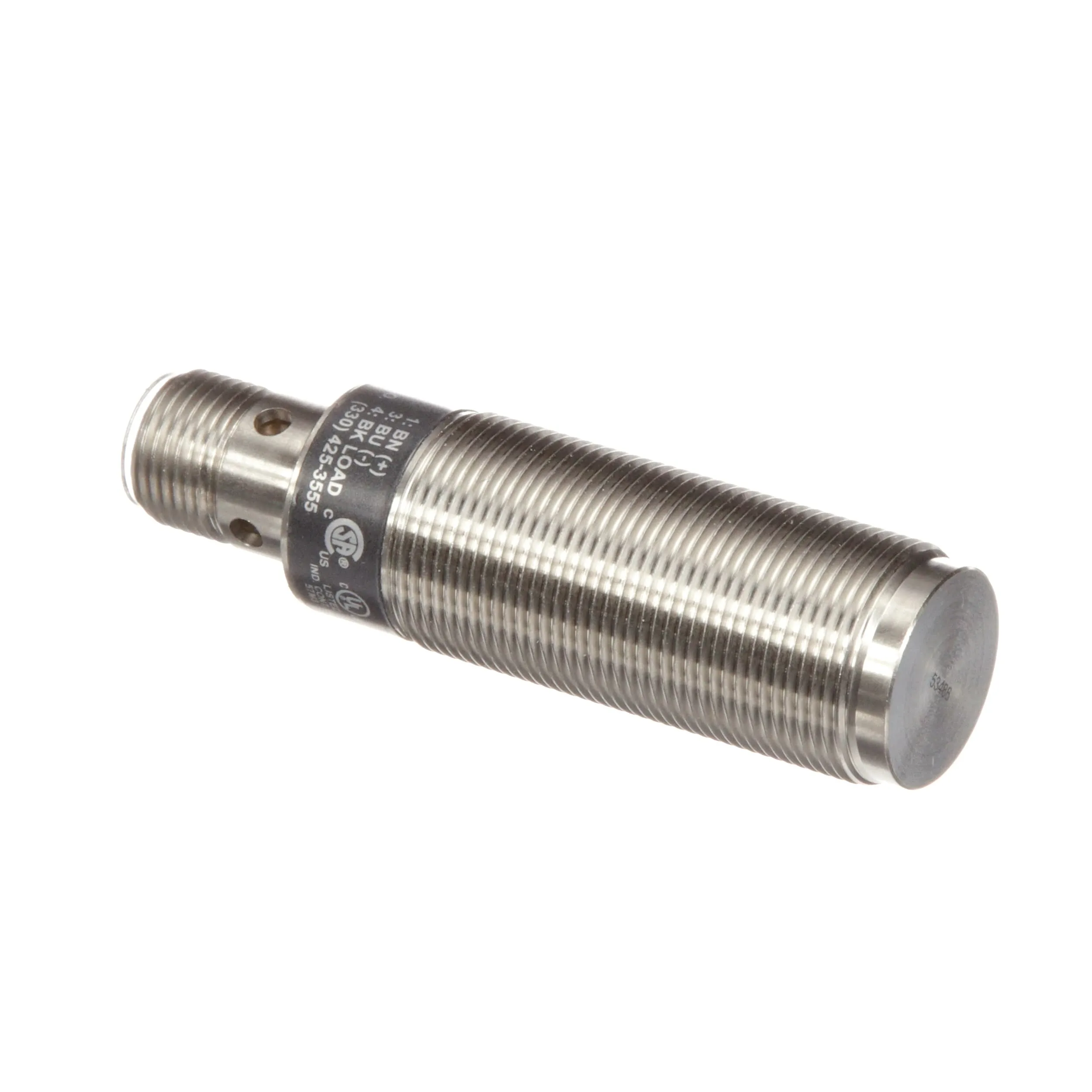

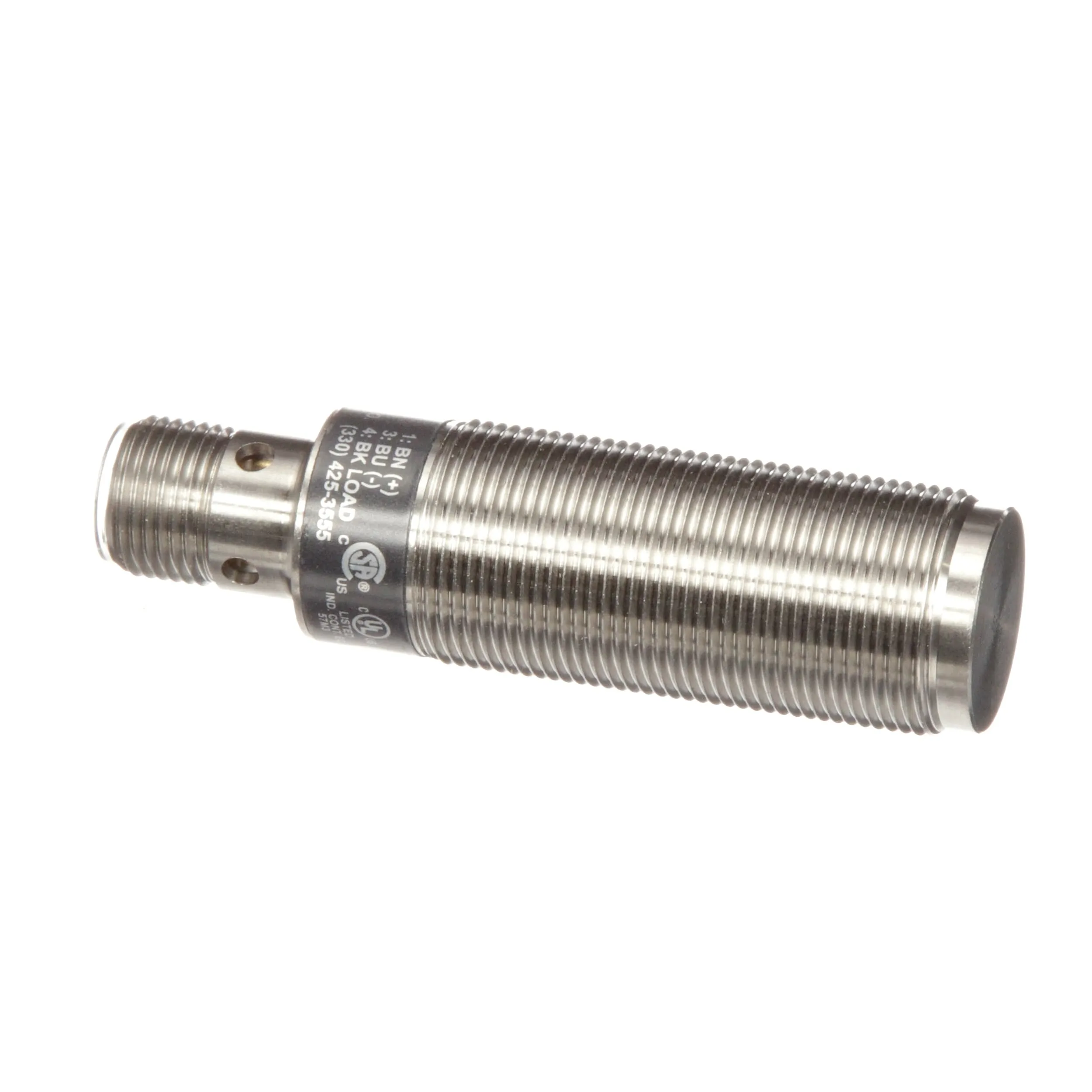

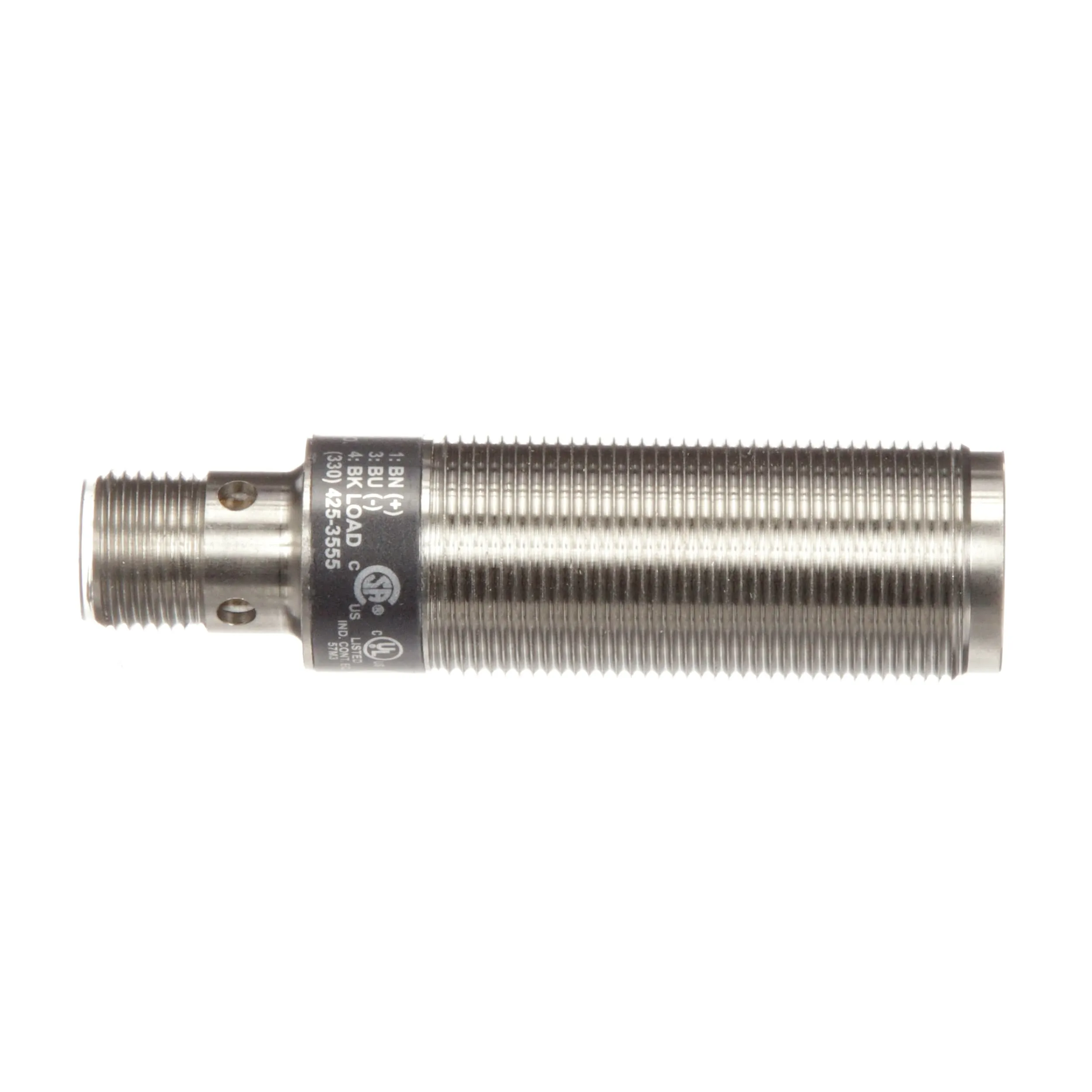

Unlike traditional plastic-face inductive sensors, the Pepperl Fuchs Pile Driver™ Series offers a 100% stainless steel housing. The 0.030" thick sensing face survives the harshest industrial environments, unaffected by everyday target abrasion and accidental impact. — Extended range models available.
Features:
Specifications:
