Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Alternate Mfr Part Number | 801376 |
| Body Style | Cylindrical |
| Cable Length | 2 m |
| Connection Type | Cable 3-Wire |
| Current Consumption | 15 mA |
| Current, Switching | 200 mA |
| Housing Material | Nickel Plated Brass |
| IP Rating | IP67 |
| Maximum Operating Temperature | 70 C |
| Measurement Range | 2 mm |
| Minimum Operating Temperature | 25 C |
| Mounting Type | Non-Flush |
| Operating Temperature, Maximum | 70 C |
| Operating Temperature, Minimum | 25 C |
| Output | NPN-NO |
| Primary Type | Inductive Proximity Sensors |
| Series | |
| Shielding | Unshielded |
| Supply Voltage | 30 VDC |
| Termination | 3-wire |
| Voltage Regulation | DC |
Overview

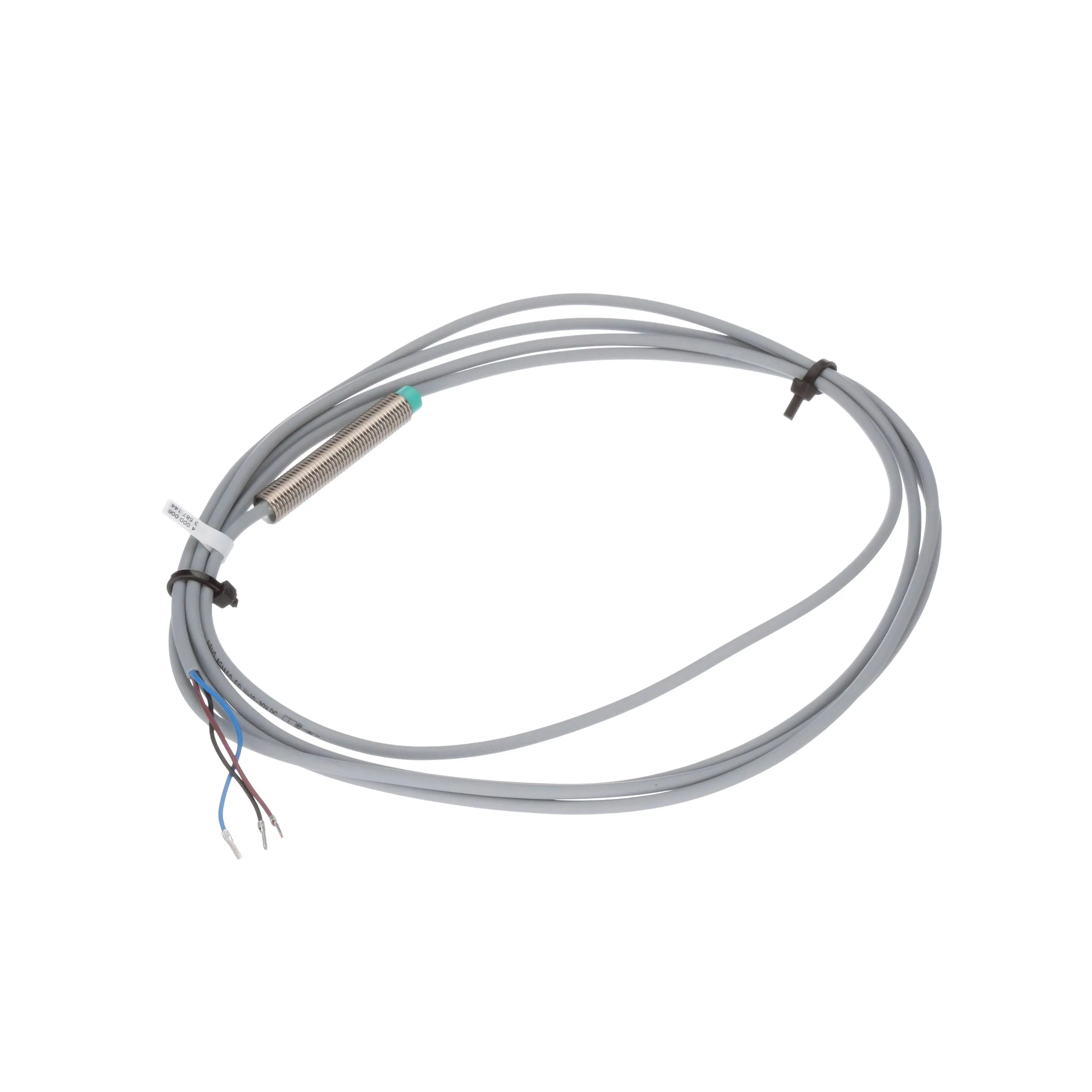

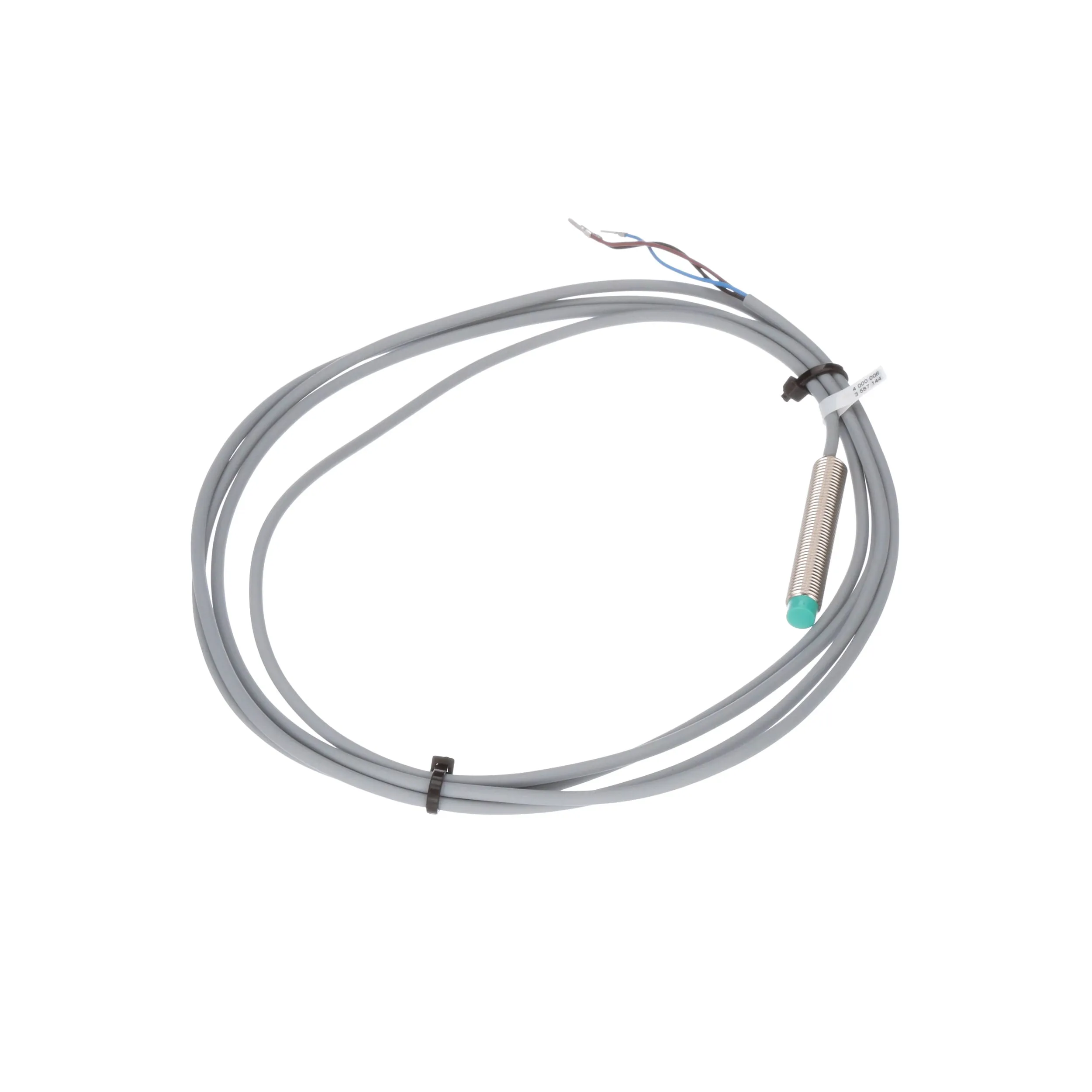

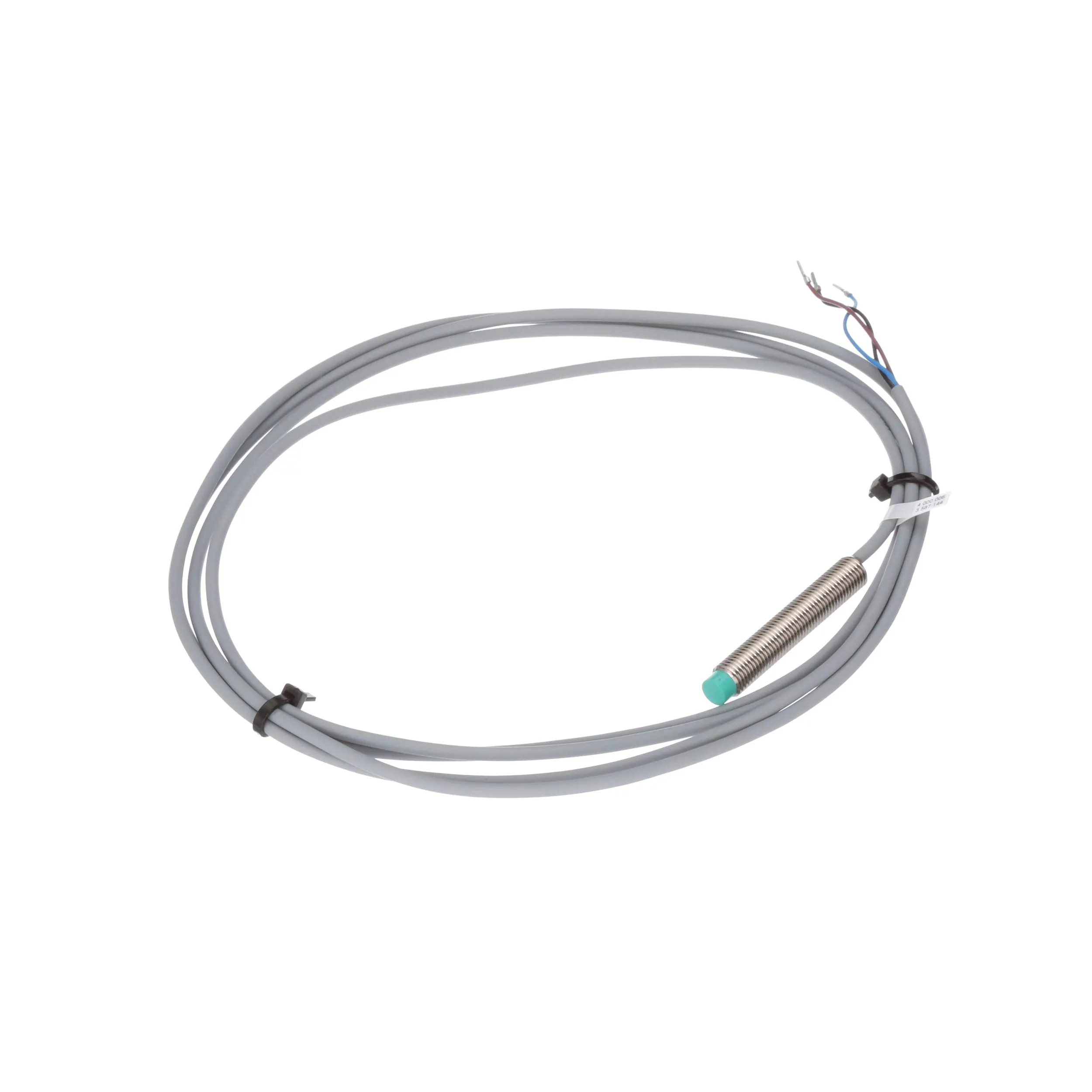

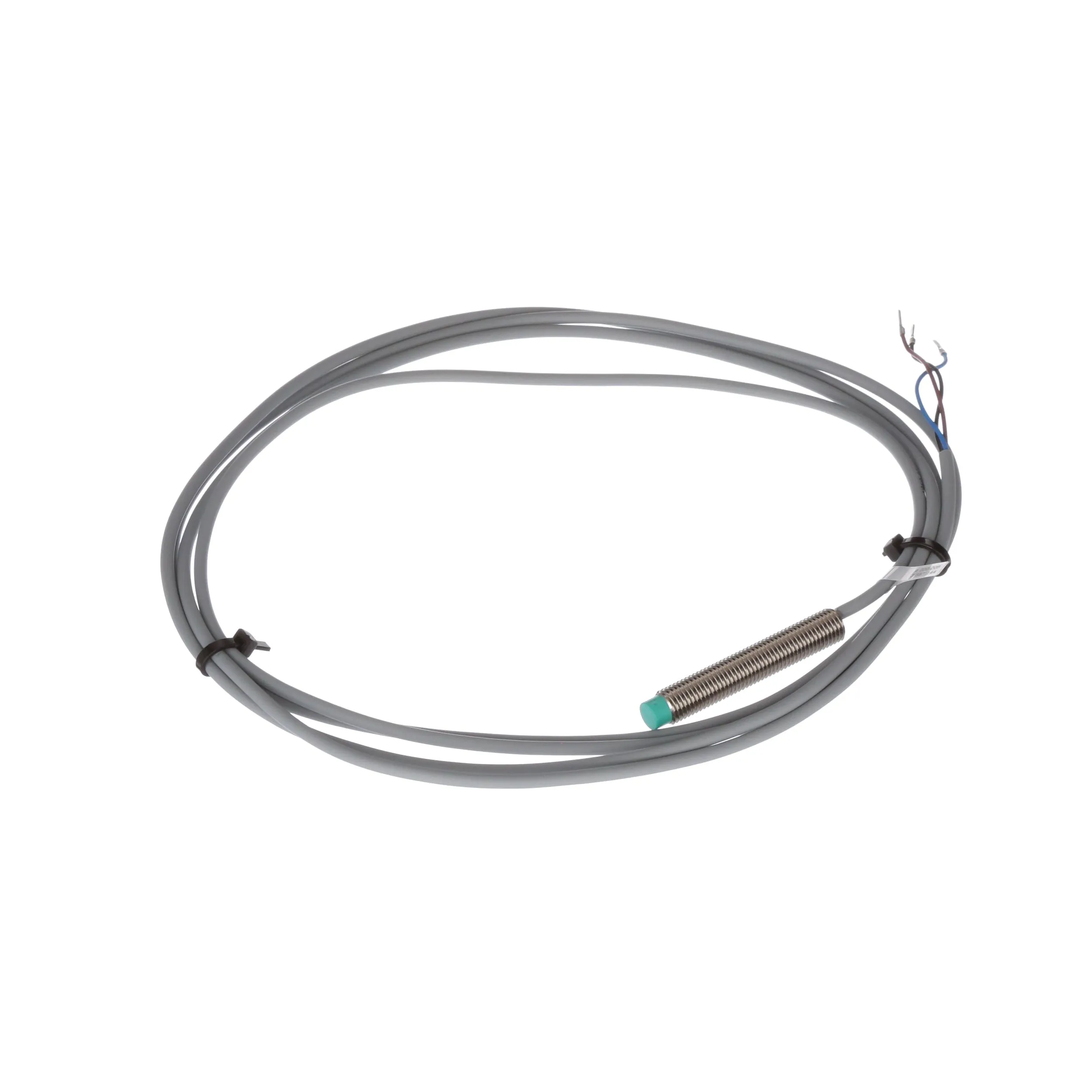

3-wire DC basic inductive proximity sensors — 4 mm sensing range — Non flush mountable — NO output, NPN — This product is also a miniature cylindrical proximity sensor and a 3- and& 4-wire DC extended range proximity sensor. Features:
