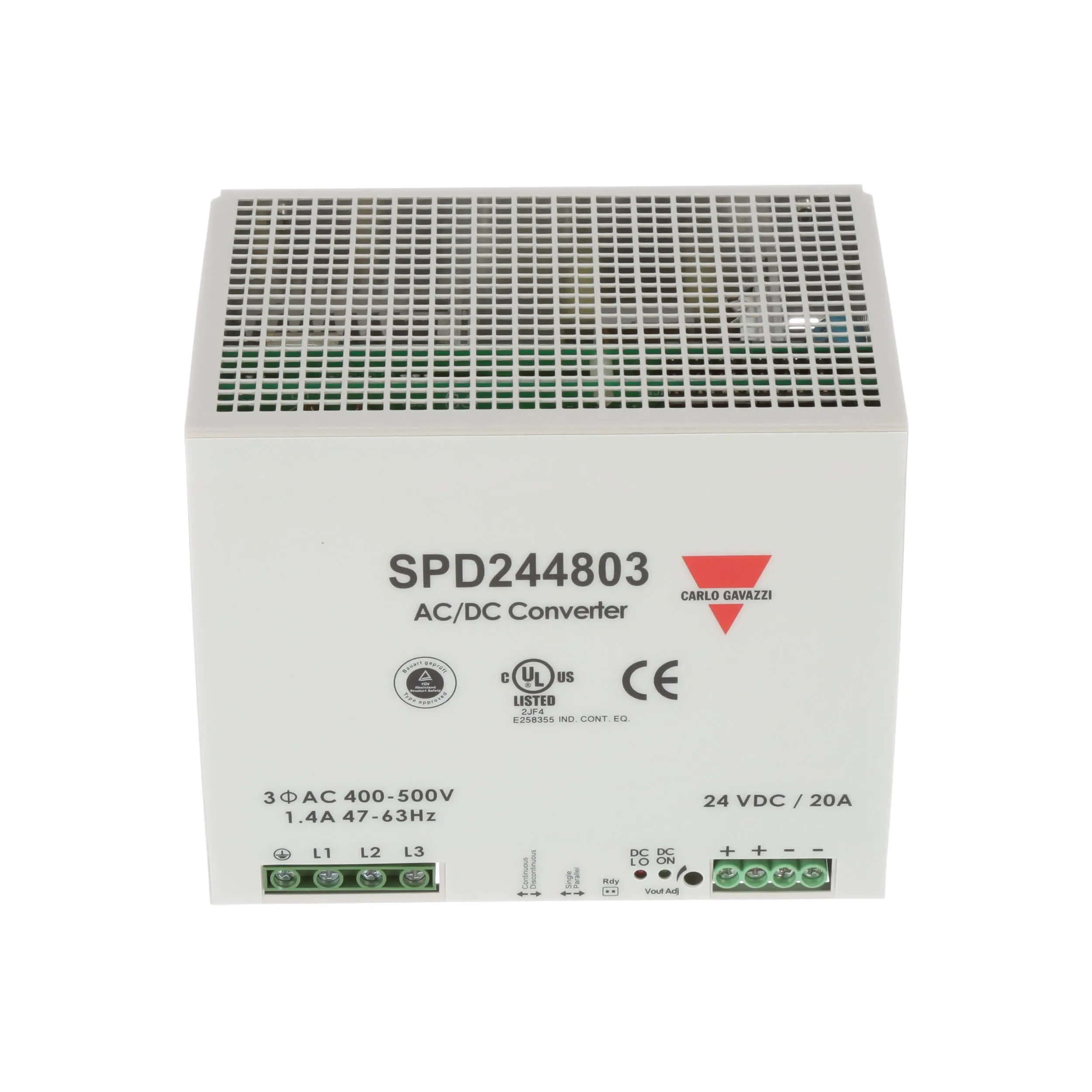

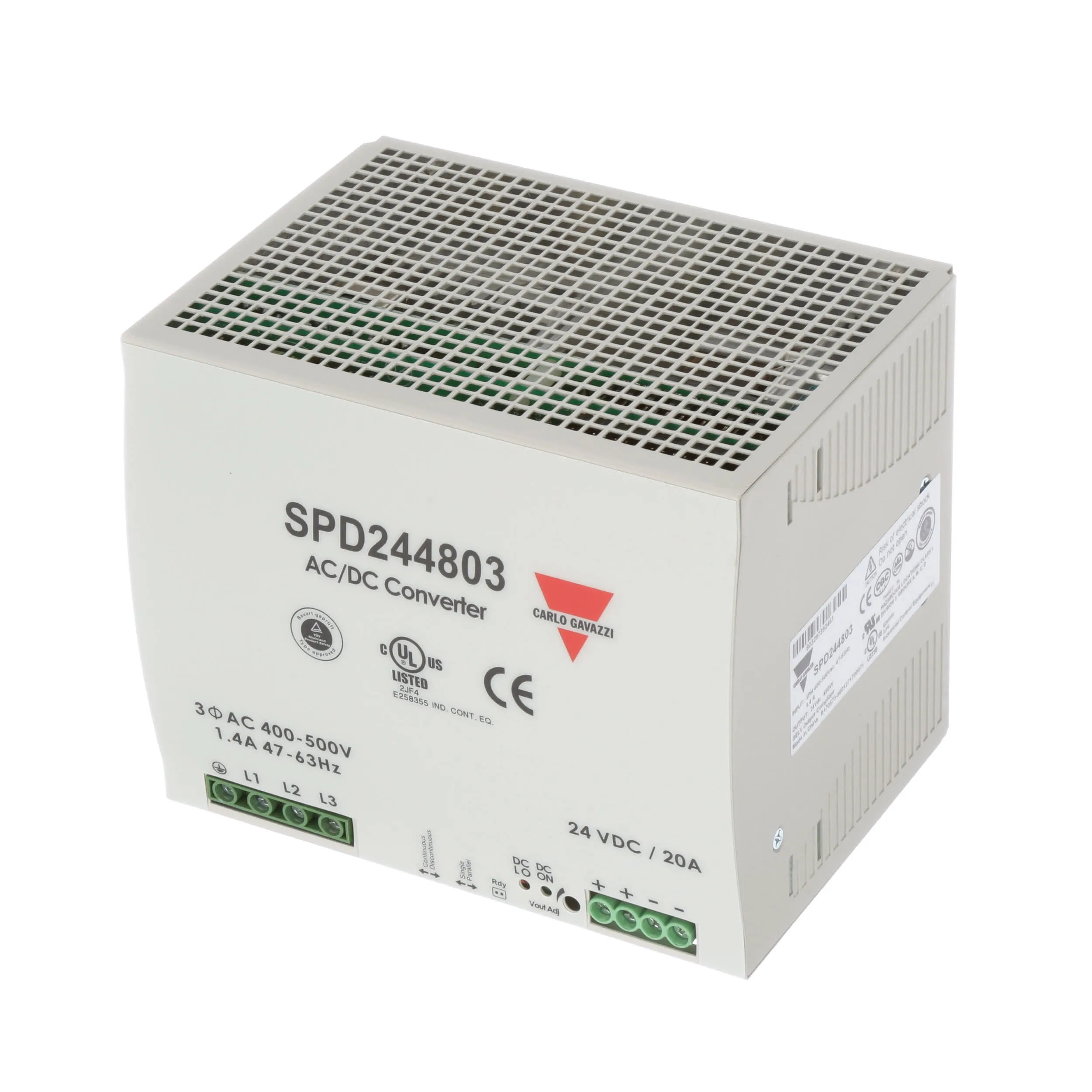

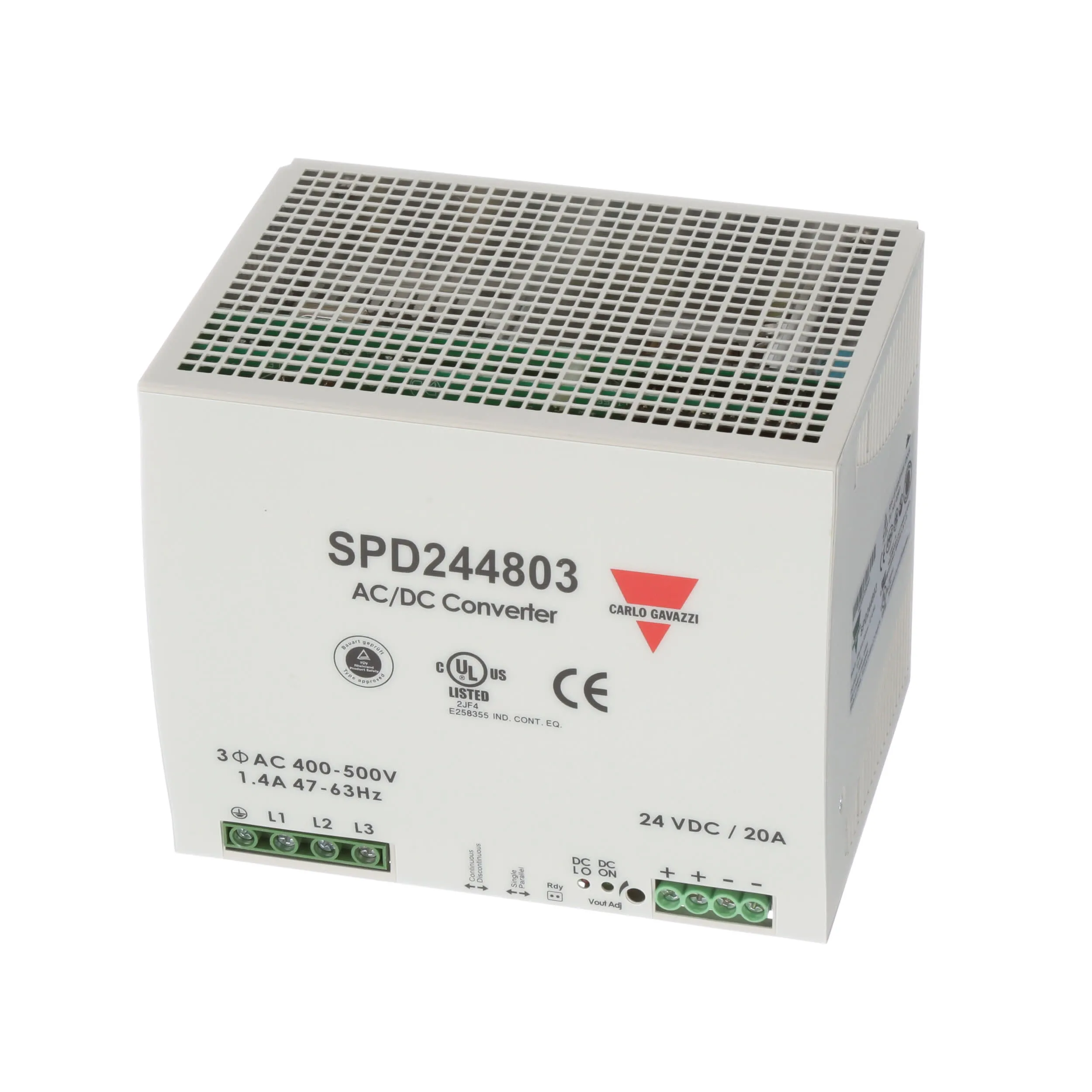

Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Configuration | Enclosed |
| Input Voltage | 347 VAC 3Ph ; 380 VAC 3Ph ; 400 VAC 3Ph ; 415 VAC 3Ph ; 440 VAC 3Ph ; 460 VAC 3Ph ; 480 VAC 3Ph |

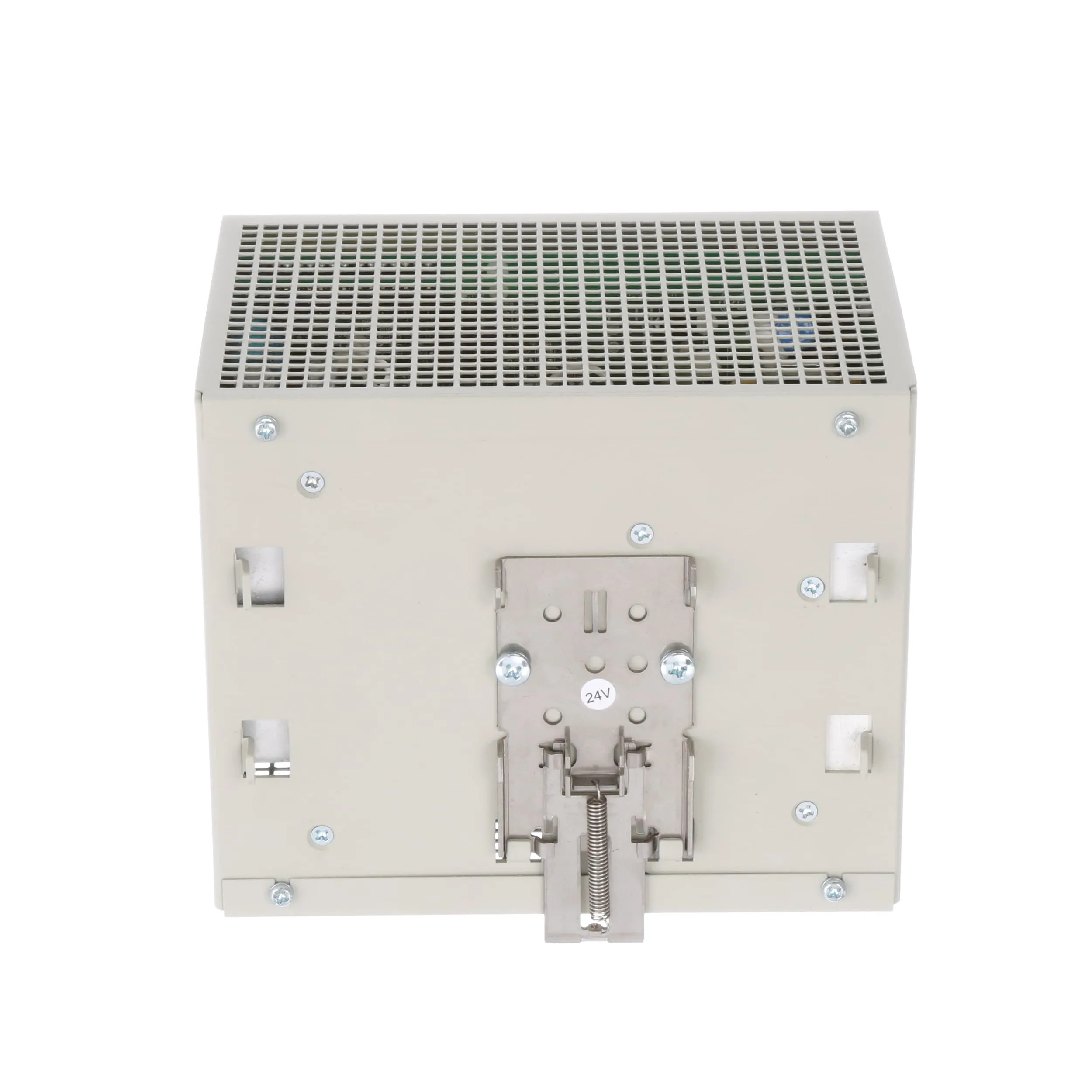

| Mounting Type | DIN Rail Mount |
| Number of Outputs | 1 Output |
| Operation | PFC |
| Output Current | 20 A |
| Output Power | 480 W |
| Output Voltage | 24 VDC |
| Primary Type | AC-DC |
| Product Header | SPD Switching Power Supply |
| Series | |
| Special Features | Parallelable |
| Type | Industrial |
| Voltage, Input Range | 340-575 VAC 3Ph |
Overview
It is presents a new range of power supplies especially designed for the automation market. The wide range of supply voltages and DC output voltages/power provide a multitude of choices for all low power electrical or electronic devices commonly used in automatic machinery. Components such as sensors, electromechanical relays, contactors, solid state relays, timers, temperature controllers, PLCs, process controllers, DC motors, solenoids, displays, etc. now have a reliable power source.
